Specification of Glass:
(1) Fireproof: 0.5h, 1h, 2h fire integrity or heat insulation;
(2) Stable: Surstainable, stable,10 years service life, 5 years guarantee; without bubbles, yellowing,
discoloration, deguming;
(3) fire resistant inter layer is harmless and not-toxic, gree enviromental protective;
(4) Ultrathin: 10mm, 135 minutes and inradiance, creating the thinnest and the best performance in the world.
(5) Insulation: EI series(Fire integrity & Heat insulation), reduce temperature at the unexposed side from 1000 degree to 140 degree, passed the BS476, BSEN, AS standard.
(6) Hard: Solid and inorganic inter layer, tempered surface glass, satisfy the designer with large size.
Specification:
Thickness (mm) | Weight (KG/M2) | Fireproof performance (Hours) | Fire insulation | Fire integrity | Standard |
10 | 21 | EW120/E120 | X | √ | BS 476 Part22:1987 |
15 | 32.5 | EW120/E120/EI30 | ≤140ºC,≤180ºC | √ | SS334 /BS EN1634-1 |
21 | 48 | EW120/EI30 | ≤140ºC,≤180ºC | √ | BS 476 Part22:1987/BS EN1634-1.2008/AS1530.4:2005 |
26 | 52 | EI60 | ≤140ºC,≤180ºC | √ | BS 476 Part22:1987/BS EN1634-1.2008/AS1530.4:2005 |
41 | 82 | EI120 | ≤140ºC,≤180ºC | √ | BS EN1634-1.2008/AS1530.4:2005 |
Primary competitive advantages:
1.More than 22 years manufacturing experience
2.Leading technology,technique and equipments
3.Safe package for long distance sea loading,delivery on time
4.certification with ISO9001:2000 and BS476
Product Display

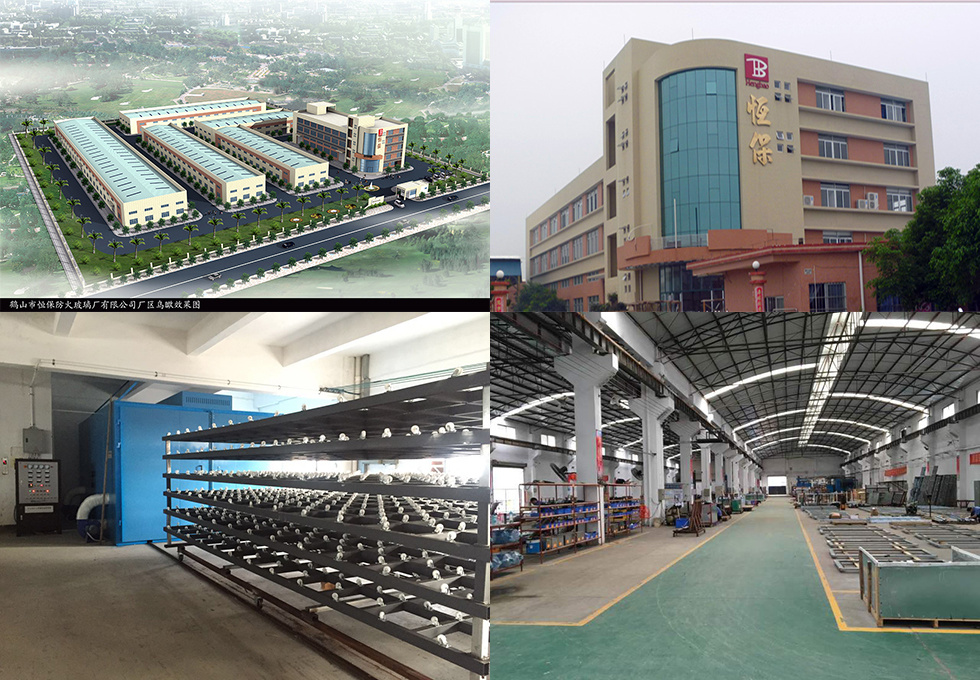

Heshan Hengbao is located in No.8 Fumin Industrial Park Taoyuan Town, Heshan City, Guangdong China,covers the area of 25000 square meter. With all kinds of professional personnel and advanced production equipment, Hengbao is specialized in fireproof glass products, such as: fire resistant glass, fire rated glazing door & window system, fire rated glazing partition, fireproof window & smoke barrier etc.
After 20 years of steady development, Hengbao has successfully become the forefront of the industry and gotten the national recognition with its advanced technology, professional research and development, modern production and superior quality. At the same time, it has also acquired a number of national awards,such as"new high-tech enterprise","China's top 10 fire glass enterprises", and participated in the revised of Chinese national standard (GB15763.1-2009) about fire resistant glass .
Our products complied with GB(Chinese Standard), BS (British Standard) , EN(European Standard), AS (Australian Standard), and ASTM(American Standard). All of our fire test reports and certificates are available upon request. Besides, our products are exported to all parts of our country, Hong Kong, Macao, Taiwan, Britain, France, Spain and other countries and regions.Our company's development comes from the customer's recognition.
With high quality and reasonable price, HENGBAO is used in many major buildings and our projects are dotted in many provinces, like Beijing, Shangdong, Guangxi, etc. We will always provide high quality products and services for all of you.
