TL;DR:
Semi-tempered glass, also called heat-strengthened glass, offers roughly twice the mechanical strength of standard annealed glass while breaking into larger, safer fragments than fully tempered glass. Heshan Hengbao produces certified semi-tempered glass solutions for facades, skylights, curtain walls, and other demanding architectural applications.
Architects and building engineers face a constant balancing act. They need glazing that is strong enough to resist wind loads, thermal stress, and accidental impact—yet controllable enough in failure mode to keep occupants safe and repairs manageable. Semi-tempered glass sits squarely at that intersection, offering a performance profile that neither standard float glass nor fully tempered glass can match on its own.
Demand for this glass type is climbing alongside the global push for larger, more transparent building envelopes. The global architectural glass market was valued at approximately USD 62 billion in 2023 and is projected to expand steadily through 2030, driven by commercial construction, urban renewal, and tightening energy-efficiency codes. For specifiers navigating this landscape, understanding what semi-tempered glass actually delivers—and where it outperforms alternatives—is increasingly important.
Semi-tempered glass (also called heat-strengthened glass) is produced by heating standard float glass to around 620–650 °C and then cooling it at a controlled, moderate rate—slower than the rapid quench used for fully tempered glass. This process creates a compressive surface stress of roughly 24–52 MPa, compared with 69 MPa or higher in fully tempered glass.
The result is a product that sits between annealed and fully tempered glass on the performance spectrum:
Strength: Approximately twice that of standard annealed glass under uniform load.
Thermal resistance: Withstands temperature differentials up to approximately 100 °C, making it suitable for facades with high solar exposure.
Breakage pattern: Fractures into large, irregular shards rather than the tiny pebbles of fully tempered glass—an important characteristic for overhead and sloped glazing where fragment retention matters.
Because semi-tempered glass does not fully dice on breakage, it can be used in laminated assemblies where maintaining glazing integrity after an impact is a safety priority.
Choosing the right glass product starts with understanding trade-offs across key performance dimensions. The table below summarizes how semi-tempered glass compares with annealed and fully tempered glass across the criteria that matter most to architects and contractors.
Property | Annealed Glass | Semi-Tempered Glass | Fully Tempered Glass |
|---|---|---|---|
Surface compressive stress | < 10 MPa | 24–52 MPa | ≥ 69 MPa |
Relative strength vs. annealed | 1× | ~2× | ~4× |
Thermal resistance (ΔT) | ~40 °C | ~100 °C | ~150–200 °C |
Breakage pattern | Large sharp shards | Large irregular pieces | Small blunt pebbles |
Can be cut after processing | Yes | No | No |
Suitable for laminating | Yes | Yes (preferred for overhead use) | Limited |
Nickel sulfide inclusion risk | No | No | Yes |
Typical applications | Interior partitions | Facades, skylights, curtain walls | Doors, safety glazing, balustrades |
One distinction worth noting: fully tempered glass carries a small but real risk of spontaneous fracture caused by nickel sulfide inclusions in the raw glass. Semi-tempered glass does not carry this risk, which is one reason structural engineers often specify it for large overhead canopies and glass roofs.
Large glass facades are subject to complex stress patterns—wind suction, thermal cycling, and differential movement of the supporting structure. Semi-tempered glass handles these combined loads more reliably than annealed glass, and its larger breakage fragments mean that even in the event of failure, the glazed unit is more likely to stay in place temporarily, reducing fall risk from height.
As high-performance architectural glass, semi-tempered glass is frequently laminated with PVB or SGP interlayers for curtain wall systems, adding an additional layer of fragment retention and post-breakage integrity.
Overhead glazing regulations in most jurisdictions require glazing that retains its fragments after breakage. Semi-tempered glass laminated with a structural interlayer satisfies this requirement. Fully tempered glass, while strong, can pose a hazard overhead because its small fragments can pass through standard interlayers under impact. Semi-tempered glass, with its larger fracture pattern, bonds more effectively to the interlayer and stays in place.
Retail arcades, airport terminals, and sports arenas use sloped glass roofing extensively. Here, the combination of thermal resistance, mechanical strength, and safe breakage behavior makes semi-tempered glass the specification of choice. Heshan Hengbao supplies glazing for these demanding environments, backed by ISO 9001 and ISO 14001 certifications and a production facility spanning over 65,000 square meters in Jiangmen, Guangdong.
Heshan Hengbao Fire Resistant Glass Factory Co. Ltd has spent 28 years developing and manufacturing specialty glass products for the construction industry. The company holds 74 national CCCF product certificates and over 270 test reports—a body of documentation that gives procurement teams and building certifiers a clear compliance trail.
What distinguishes Hengbao's semi-tempered glass offering is the combination of controlled manufacturing tolerances and full customization capability. Size, thickness, coating, and interlayer specifications can all be adjusted to match project requirements. This matters when a glass facade is designed to precise structural and aesthetic tolerances that off-the-shelf products cannot meet.

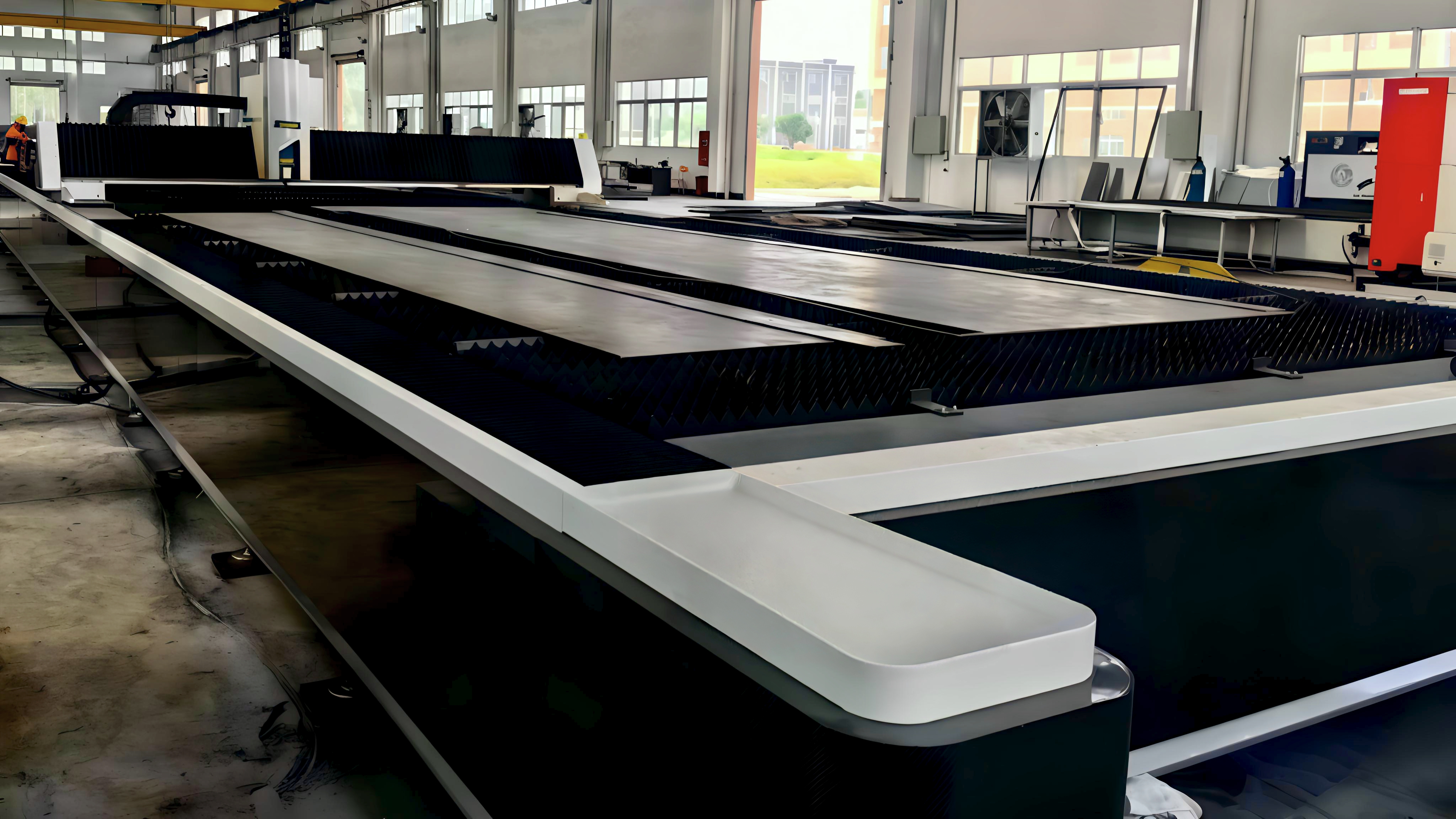

The factory's production equipment includes large-format processing lines capable of handling oversized panels common in commercial architecture. Independent quality inspection at multiple production stages ensures that flatness, surface stress uniformity, and optical clarity consistently meet specification.
Products like strong tear resistance glass—specifically the SGP laminated glass range—complement semi-tempered glass assemblies where post-breakage load-bearing capacity is a design requirement. SGP interlayers are stiffer and stronger than standard PVB, allowing thinner glass constructions to achieve the same structural performance, which reduces dead load on the building frame.
If the glass must support its own weight and resist wind pressure even after cracking, a laminated semi-tempered assembly with an SGP or ionoplast interlayer is the appropriate solution. Single-ply semi-tempered glass does not retain structural capacity after fracture.
Solar control coatings, shade patterns from adjacent elements, and HVAC air diffusers near glass can all create thermal stress. Semi-tempered glass handles differentials up to approximately 100 °C, but edge conditions and frame design must also be reviewed to avoid concentrating stress at vulnerable points.
Commercial projects in China, Hong Kong, and many export markets require glazing products with traceable certifications. Hengbao's CCCF-certified product range covers the most common specification requirements and can be supported with full test documentation for project submission.
Semi-tempered glass fills a genuine performance gap in the architectural glazing palette. Stronger than standard float glass, safer in overhead applications than fully tempered glass, and free from the spontaneous fracture risk that affects tempered products—it is a logical choice for facades, skylights, and curtain walls across a wide range of project types.
Heshan Hengbao's engineering team is available to help specifiers match glass type, thickness, interlayer, and certification requirements to specific project conditions. With 28 years of production experience and a certified product range already proven on projects across Asia and beyond, Hengbao is well placed to support your next architectural glazing specification. Contact the team at ritachan@hbglass.net or visit firepros.hk to request technical data sheets and project-specific quotations.
Semi-tempered glass is heat-strengthened to roughly twice the strength of annealed glass, while fully tempered glass reaches approximately four times the strength. The key practical difference is breakage pattern: semi-tempered glass breaks into large fragments that stay in laminated assemblies, while fully tempered glass dice into small blunt pebbles. Semi-tempered glass also carries no nickel sulfide spontaneous fracture risk.
No. Like fully tempered glass, semi-tempered glass cannot be cut, drilled, or edge-worked after the heat-strengthening process. All cutting, hole drilling, and edge finishing must be completed before the glass enters the furnace.
Semi-tempered glass alone does not provide fire resistance. Fire-rated glazing requires specially formulated fire resistant glass products, such as the FPOS fire resistant glass or single layer fire rated glass manufactured by Heshan Hengbao. However, semi-tempered glass is sometimes used as a component in broader building envelopes alongside certified fire-rated systems.
Thickness depends on panel size, wind load design pressure, aspect ratio, and support conditions. Common thicknesses for semi-tempered laminated facade glass range from 8 mm to 19 mm per ply. Heshan Hengbao's technical team can provide load span calculations and thickness recommendations based on project-specific parameters.
Lead time varies by order complexity, panel size, and coating specification. Standard projects typically ship within 15–30 days from order confirmation. Large custom projects with specialized coatings or interlayers may require additional lead time. Contact Hengbao directly for project-specific scheduling.
