In building design and safety, few elements are as critical as fire protection. While we often think of sprinklers and alarms, the physical barriers that contain a fire are just as important. A fire resistant door is a cornerstone of this passive fire protection system. It's designed to slow or prevent the spread of fire and smoke, giving occupants more time to evacuate and allowing emergency services to manage the situation.
Many people assume that a fire resistant door must be a solid, windowless slab of steel or wood. However, modern advancements have made it possible to combine safety with style. Today, a fire rated glass door offers the same level of protection without sacrificing natural light or aesthetic appeal. These doors are becoming increasingly popular in commercial, public, and even residential buildings.
This guide will explore everything you need to know about fire rated doors, with a special focus on fire rated doors with glass. We'll cover how they work, the different ratings they have, and why a fire rated glass door might be the perfect solution for your project.
A fire resistant door, also known as a fire rated door, is a specially constructed door assembly designed to withstand fire for a specific period. It is part of a passive fire protection system, which means it works to compartmentalize a building and contain a fire within the area where it originated. This containment is crucial for protecting escape routes and preventing the rapid spread of flames, smoke, and toxic gases.
The entire door assembly—including the door leaf, frame, hardware (hinges, locks, latches), and any glazing—must be tested and certified together. If one component fails, the entire system's integrity is compromised. The performance of a fire resistant door is measured in minutes or hours, indicating how long it can resist a fire under test conditions.
These doors play a vital role in maintaining the structural integrity of fire-rated walls. Without a properly installed and certified fire resistant door, a fire-rated wall is essentially incomplete, leaving a significant vulnerability.
For a long time, the idea of a glass door being fire resistant seemed impossible. Traditional glass shatters easily when exposed to extreme heat, creating a dangerous opening for fire and smoke. This perception led to the widespread use of solid, opaque doors in areas requiring fire separation, often resulting in dark corridors and closed-off spaces.

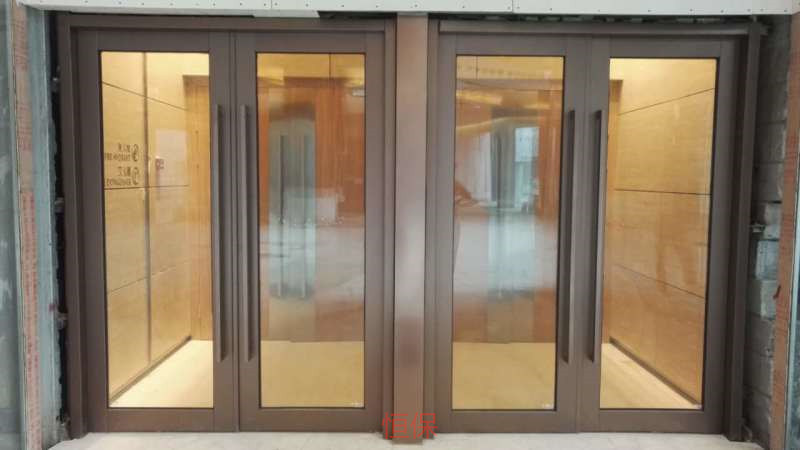

The breakthrough came with the development of specialized fire-rated glass. This is not ordinary glass; it's an engineered product designed to withstand thermal shock and maintain its integrity when exposed to fire. This innovation paved the way for the fire rated glass door, a product that merges the transparency of glass with the resilience of a fire barrier.
Now, architects and designers no longer have to choose between safety and an open, light-filled environment. A fire rated glass door allows for visual connectivity between spaces while still meeting stringent building codes. This makes them ideal for offices, hospitals, schools, and modern homes where both aesthetics and safety are top priorities.
The secret behind a fire rated glass door lies in its advanced materials. There are two primary types of fire-rated glass used in these doors:
Ceramic Glass: This glass has a very low coefficient of thermal expansion, meaning it doesn't expand or contract much with temperature changes. This stability allows it to withstand the intense heat of a fire without shattering. It effectively blocks flames and smoke but does not prevent the transfer of radiant heat.
Intumescent Laminated Glass: This is a multi-layered product. It consists of two or more sheets of tempered glass with a clear, intumescent interlayer between them. When exposed to heat (around 250°F or 120°C), this interlayer turns into a rigid, opaque, and highly insulating foam. This char not only blocks flames and smoke but also significantly reduces the transfer of dangerous radiant heat, protecting people on the non-fire side.
These specialized glass types are then fitted into a certified fire resistant door frame, creating a complete and effective fire-rated assembly. The combination of the right glass, frame, and hardware results in fire rated doors with glass that provide robust protection.
Fire ratings indicate how long a door assembly can resist a fire. These ratings are determined through rigorous testing by certified laboratories. During a test, the door is mounted in a wall and exposed to a controlled fire that follows a standard time-temperature curve.
The rating is typically expressed in minutes, such as 20, 45, 60, 90, or 180 minutes. The required rating for a specific location depends on the fire rating of the wall it is installed in and its function within the building.
Fire Rating (Minutes) | Common Application Area | Description of Protection Level |
|---|---|---|
20 Minutes | Interior corridors, room-to-corridor partitions. | Offers basic protection against smoke and flames. Often required between a garage and a living space in residential homes. |
45-60 Minutes | Stairwell enclosures, separations between different occupancy types (e.g., office and retail in the same building). | Provides a substantial barrier, crucial for protecting primary escape routes and allowing for safe evacuation. |
90 Minutes | Stairwells in taller buildings, walls dividing a building into separate fire compartments. | A higher level of protection used for creating robust fire compartments in larger or more complex structures. |
180 Minutes (3 hrs) | Walls separating entirely different buildings or major building divisions. | The highest level of passive fire protection, used in situations where a fire must be contained for an extended period. |
When selecting fire rated doors with glass, it is essential to ensure that both the glass and the door assembly have the appropriate rating for the intended location. A fire rated glass door with a 90-minute rating provides the same level of containment as a solid 90-minute door.
Choosing fire rated doors with glass over traditional solid doors offers numerous advantages that go beyond basic code compliance.
Enhanced Safety and Visibility: In an emergency, a fire rated glass door allows occupants and first responders to see through the door. This visibility can help locate people who need assistance and assess conditions on the other side without having to open the door and expose themselves to danger.
Improved Aesthetics and Natural Light: These doors create a sense of openness and allow natural light to flow between spaces. This makes environments feel larger, brighter, and more welcoming. Dark, enclosed hallways can be transformed into well-lit, inviting thoroughfares. Design Flexibility: Modern fire rated doors with glass are available in a variety of styles, from full-lite doors to those with smaller vision panels. They can be integrated into sleek, contemporary designs or more traditional architectural styles, offering designers immense flexibility.
Code Compliance without Compromise: A certified fire rated glass door allows you to meet strict fire safety regulations without sacrificing your design vision. You can achieve an open-concept feel while still creating the necessary fire separations.
A fire-resistant door is a complete door assembly, including the frame and hardware, that has been tested and certified to stop or delay the spread of fire and smoke for a designated period. It is a key component of a building's passive fire protection system, designed to compartmentalize fires and protect escape routes. The effectiveness of the entire system relies on the proper installation of all its certified parts.
Yes. Through advanced technology, a glass door can be fire rated. A fire rated glass door uses specially engineered glass, such as ceramic or intumescent-laminated glass, which can withstand extreme heat without failing. This glass is installed in a certified door frame and assembly, creating a transparent barrier that offers the same level of fire protection as a solid door with the same rating.
When it comes to protecting lives and property, there is no room for compromise. A high-quality fire resistant door is a critical investment in safety. For projects that demand both exceptional fire protection and modern design, fire rated doors with glass offer the perfect solution.
If you are looking for a reliable and certified manufacturer, look no further than HengBao. With a commitment to innovation and quality, HengBao specializes in providing top-tier fire-rated glass solutions, including complete fire rated glass door systems. Their products are rigorously tested to meet international standards, ensuring you receive the protection you need and the aesthetic you desire.
Elevate your project with the safety and elegance of a HengBao fire rated glass door.
