Architects and property developers face a constant challenge when designing modern commercial spaces. They must create bright, open environments that invite natural light while strictly adhering to rigorous safety regulations. Balancing aesthetic appeal with occupant protection requires building materials that can perform multiple functions simultaneously.
Historically, achieving strict fire safety compliance meant relying on opaque, heavy materials like solid steel, concrete, or thick gypsum boards. These materials effectively compartmentalized flames and smoke, but they also created dark, enclosed spaces that hindered the architectural vision of open, collaborative environments. Building occupants often felt disconnected from the outside world, and the heavy reliance on artificial lighting increased energy costs.
Advances in manufacturing have entirely transformed how we approach passive fire protection. The development of specialized glazing technology allows designers to maintain transparency without compromising safety. Building owners can now protect escape routes, stairwells, and property perimeters while still achieving a sleek, contemporary aesthetic.
Understanding how these specialized materials work is crucial for anyone involved in commercial construction or facility management. This guide explores the mechanics, benefits, and applications of Fire rated glass to help you make informed decisions for your next architectural project.
Standard window panes offer virtually no protection during a severe building fire. When exposed to extreme heat, regular glass shatters within minutes, allowing oxygen to rush into the room and feed the flames. This rapid failure accelerates the spread of fire and smoke throughout a facility.
Specialized fire-resistant glazing undergoes a completely different manufacturing process. Engineers design these panes to withstand thermal shock and remain intact under massive temperature fluctuations. Depending on the specific product, the glazing will provide a physical barrier against flames and toxic smoke for a designated period, usually ranging from 30 to 120 minutes.
Some advanced glazing solutions go a step further by blocking radiant heat. During a severe fire, the heat radiating through standard materials can be intense enough to ignite combustible items on the non-fire side of the wall. Insulated glazing features special transparent intumescent layers between multiple panes of glass. When exposed to high temperatures, these interlayers expand and turn opaque, creating a protective shield that blocks both flames and dangerous radiant heat.
Building codes categorize fire-resistant materials based on their specific performance capabilities during rigorous testing. Understanding these classifications ensures you select the correct material for specific zones within your facility.
Classification | Primary Function | Heat Insulation | Typical Use Case |
E (Integrity) | Blocks flames and toxic smoke | None | Exterior property lines, basic room dividers |
EW (Integrity & Radiation) | Blocks flames, smoke, and reduces heat transmission | Partial | Hallways, commercial office partitions |
EI (Integrity & Insulation) | Blocks flames, smoke, and completely stops radiant heat | Complete | Safe evacuation routes, stairwell enclosures |
Choosing the right classification depends entirely on local building codes and the specific function of the wall or partition. For example, a basic room divider might only require an 'E' rating to prevent flames from spreading, whereas a primary evacuation stairwell will almost certainly mandate an 'EI' rating to ensure occupants can escape without suffering burns from radiant heat.
The versatility of modern glazing allows for widespread application across diverse architectural styles. Designers no longer have to hide fire safety features; instead, they can seamlessly integrate them into the core aesthetic of the building.

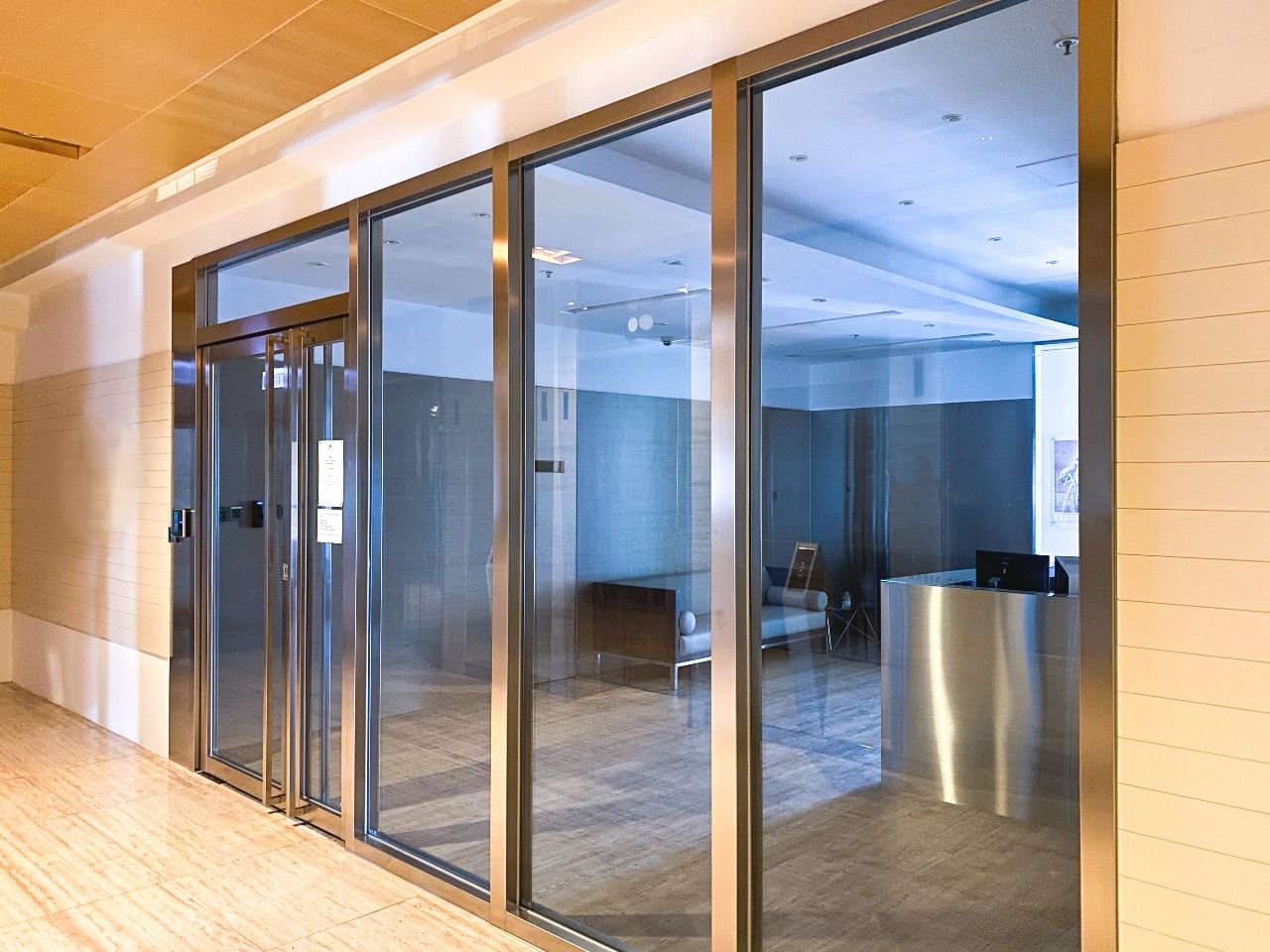

One of the most common applications is in the creation of transparent fire compartments. Large office buildings use these compartments to divide massive floor plans into smaller, manageable zones. If a fire breaks out in one section, the glazing contains the hazard, preventing it from spreading to adjacent areas. This containment strategy gives occupants ample time to evacuate and minimizes overall property damage.
Exterior applications are equally important, particularly in dense urban environments where buildings sit closely together. Installing fire rated windows along property lines prevents flames from jumping from one structure to another. These specialized windows maintain the visual appeal of the facade while strictly complying with urban fire codes.
You will also frequently see this technology utilized in floor-to-ceiling atrium enclosures. Atriums create a unique fire risk because they act like large chimneys, pulling smoke and heat upward through the center of a building. Specially engineered glazing completely seals the atrium off from the surrounding corridors, stopping the chimney effect while keeping the space flooded with natural sunlight.
Integrating fire safety materials requires a comprehensive understanding of local building codes and rigorous testing standards. Products must undergo severe laboratory testing to prove their effectiveness before they ever reach a construction site.
During these tests, technicians install the glazing into a specialized furnace and subject it to temperatures exceeding 1,000 degrees Celsius. To pass, the assembly must remain intact for the duration of its target rating. Some standards also require a "hose stream test," where technicians spray the scorching hot glass with a high-pressure fire hose to ensure it will not shatter when exposed to sudden thermal shock and physical impact from firefighting efforts.

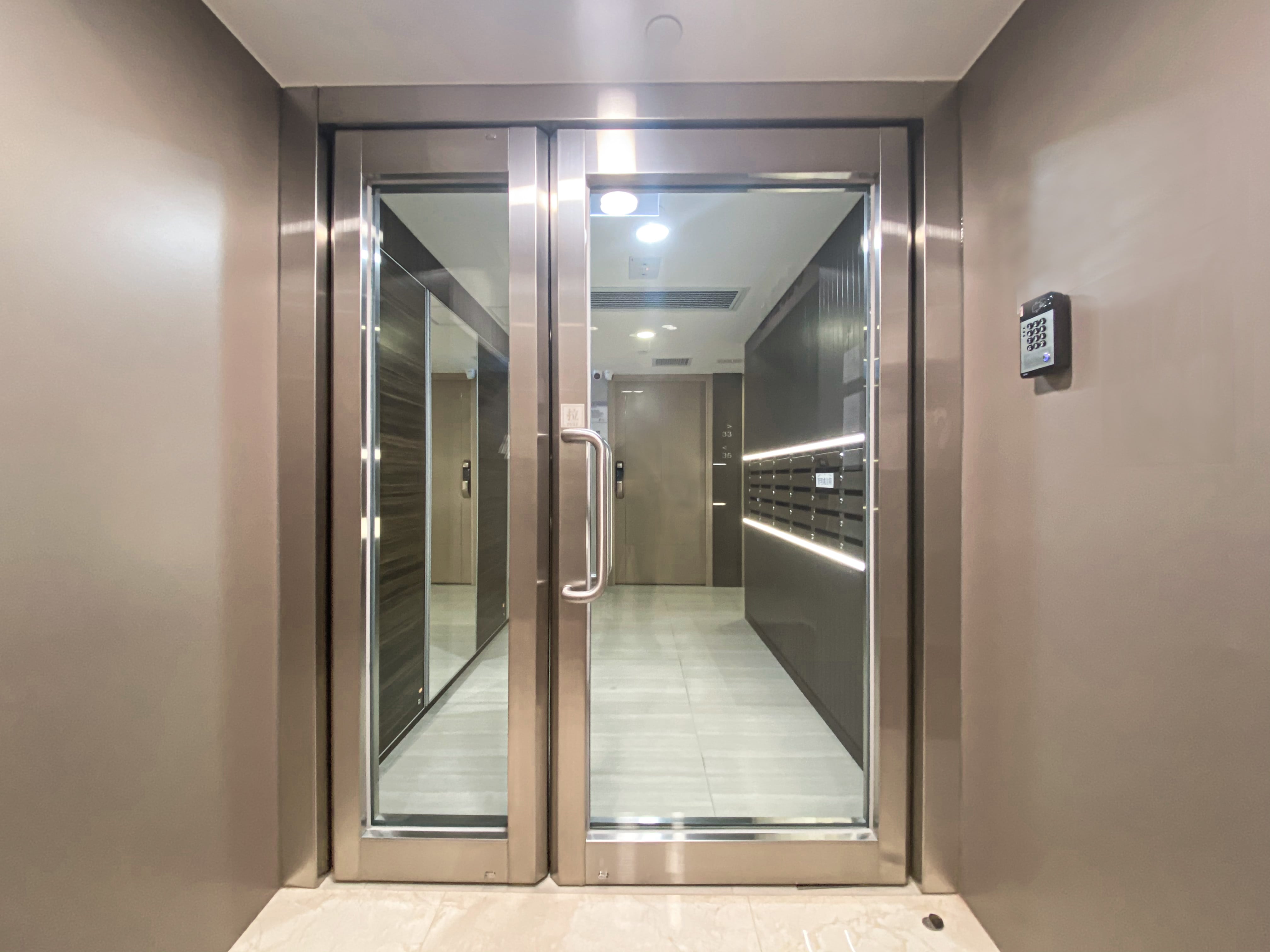

It is absolutely vital to remember that the glass is only one part of a larger safety system. A fire-resistant pane will fail if it is installed in a standard aluminum frame that melts under low heat. The framing, seals, and hardware must all carry equivalent fire ratings and be tested together as a complete assembly. For instance, high-quality fire rated doors incorporate specialized steel framing and intumescent seals that expand to fill any gaps between the door and the frame during a fire.
Partnering with experienced manufacturers ensures that the entire system—from the glazing to the framing and installation hardware—meets strict certification standards.
Tempered glass undergoes a heating and cooling process to increase its physical strength and impact resistance. While it is much safer than standard annealed glass if shattered, it is not designed to withstand the extreme, prolonged heat of a structural fire. Fire-resistant glazing is specifically engineered to endure massive thermal shock and block the passage of flames and smoke for a rated period of time.
Yes. Modern manufacturing techniques allow for a wide range of customizations. You can apply decorative films, sandblasting, or customized tints to the glass. It can also be integrated into insulated glass units (IGUs) to provide soundproofing, UV protection, and enhanced energy efficiency, all while maintaining strict fire safety certifications.
Fire rating requirements are dictated by national and local building codes, which vary significantly depending on your location, the size of the building, and its intended use (e.g., a hospital has different requirements than a warehouse). Always consult with a licensed architect, a fire protection engineer, or your local building authority to determine the exact requirements for your specific project.
While the glass itself does not require special maintenance beyond standard cleaning, the overall assembly should be inspected annually. Facility managers should ensure that door hinges operate smoothly, intumescent seals are intact and undamaged, and there are no structural modifications to the frames that might compromise the system's fire integrity.
Designing a modern commercial space requires a careful balance between visual transparency and uncompromising occupant safety. By leveraging advanced glazing technology, you can create bright, welcoming environments that protect people and property during critical emergencies.
Always ensure you source your materials from certified manufacturers with a proven track record of rigorous testing and compliance. When building safety is on the line, investing in high-quality, fully tested systems provides peace of mind that lasts for the lifetime of the structure. Reach out to a certified fire safety specialist today to discuss the best passive fire protection strategies for your upcoming projects.
