Guide To Selecting The Right Fire Rated Door

Quick answer:

A fire rated door provides critical protection by compartmentalizing flames and smoke for a specific duration, typically 30 to 120 minutes. Modern building codes require these barriers to ensure safe evacuation routes, restrict oxygen flow to active flames, and significantly minimize property damage during commercial and residential emergencies.

Building safety is a complex discipline that demands rigorous attention to detail and high-quality materials. Architects and construction managers constantly evaluate new materials that offer both aesthetic appeal and life-saving functionality. Balancing natural light transmission with strict safety regulations requires a deep understanding of specialized manufacturing processes.

Safety standards have evolved significantly over the past few decades. Previously, heavy steel and opaque materials were the only reliable options for preventing the spread of flames. Today, advanced engineering allows for transparent barriers that maintain visual openness while delivering robust structural integrity during extreme thermal events. This shift has transformed modern architectural design, allowing for bright, open spaces that do not compromise on security.

Selecting the appropriate protective elements requires careful consideration of building codes, occupant density, and specific environmental risks. Property owners must navigate a complex landscape of certifications, performance ratings, and material compositions. Understanding the underlying technology of these materials helps stakeholders make informed decisions that protect both human life and valuable assets.

What makes protective glazing essential for modern construction?

Commercial buildings must incorporate passive protection systems that activate automatically during an emergency. These systems divide a structure into distinct compartments, effectively trapping smoke and intense heat within a specific zone. By containing the hazard, these barriers buy crucial time for occupants to evacuate safely and for emergency responders to arrive on the scene.

Transparent safety barriers undergo rigorous testing to ensure they can withstand intense thermal shock. According to industry safety standards, reliable installations must remain intact even when exposed to temperatures exceeding 1,000 degrees Celsius. Furthermore, many of these systems are designed to block radiant heat transfer, ensuring that the non-exposed side of the barrier remains cool enough to touch.

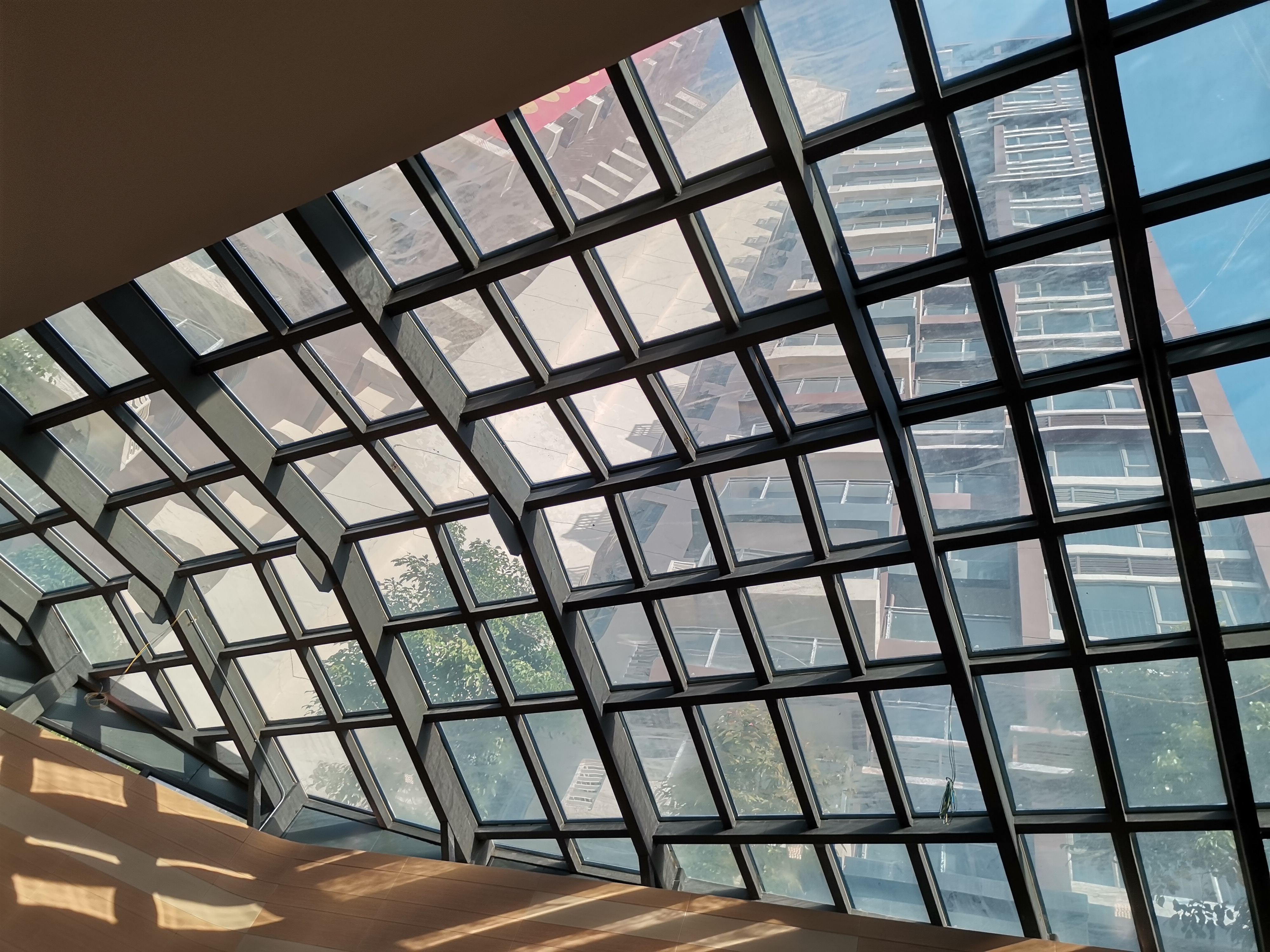

The manufacturing process for these advanced materials involves precise chemical treatments and specialized thermal tempering. For instance, Tempered glass goes through a process of extreme heating followed by rapid cooling, which increases its strength significantly compared to standard float materials. While this specific toughening process improves impact resistance, specialized chemical compositions or multi-layered intumescent designs are required to achieve extended heat resistance ratings.

How do manufacturing techniques impact thermal performance?

Different manufacturing approaches yield varying levels of protection. Single-layer borosilicate panes offer excellent resistance to thermal shock due to their low coefficient of thermal expansion. They do not shatter easily when subjected to sudden temperature changes. Conversely, multi-layered intumescent systems contain clear gels between panes that expand and turn opaque when exposed to heat, actively absorbing thermal energy.

Choose single-layer borosilicate options if budget constraints and weight limitations matter more than radiant heat blockage. Choose multi-layered intumescent systems if maximum radiant heat protection is required for narrow evacuation corridors.

How should you evaluate building safety components?

Property managers must scrutinize the certifications and testing histories of any materials they intend to install. Reliable manufacturers invest heavily in research and development to meet stringent national and international standards. For example, Heshan Hengbao Company, a leading manufacturer with over 28 years of industry experience, holds more than 74 national CCCF main product certificates and over 88 patents on protective materials.

When evaluating these systems, decision-makers should look closely at the specific duration ratings, which usually range from 20 to 120 minutes. The appropriate rating depends entirely on the building's layout, the height of the structure, and the distance to the nearest safe exit. Installing a 20-minute barrier in a high-rise stairwell that requires a 90-minute rating is a dangerous compliance failure that can lead to catastrophic outcomes.

Furthermore, integrating these systems requires compatible framing. A highly rated transparent pane is useless if the surrounding frame melts or warps within the first ten minutes of an emergency. Frame materials must undergo the same rigorous testing protocols, ensuring the entire assembly functions cohesively as a single protective unit. To complement interior doors, planners often utilize fire rated windows to allow visibility between rooms without breaching the compartmentalization strategy.

What are the differences between common protective materials?

To clarify the performance metrics of different glazing technologies, the following table outlines the heat resistance levels and typical applications of common materials.

What are the next steps for upgrading facility protection?

Securing a commercial or residential property against thermal emergencies is an ongoing responsibility. Facility managers should begin by conducting a comprehensive safety audit, identifying outdated materials and vulnerable structural points. Partnering with a certified safety inspector can provide a clear roadmap for necessary upgrades.

Once vulnerabilities are identified, consult with experienced manufacturers who offer OEM and ODM customized services to ensure the replacement materials fit the exact specifications of the building. Upgrading to modern, certified protective barriers is a critical investment that guarantees regulatory compliance and provides profound peace of mind.

Frequently asked questions

How much does it cost to install advanced protective barriers?

Costs vary widely depending on the required time rating, the size of the installation, and the specific materials chosen. Single-layer systems generally cost less, while complex multi-layered intumescent assemblies require a larger budget due to their advanced heat-blocking capabilities.

How long does the installation process take?

For standard sizes, installation typically takes a few hours per unit once the materials are delivered. However, customized systems for large architectural projects may require several weeks of planning, precise manufacturing, and phased installation by specialized technicians.

What are the best alternatives to traditional opaque steel panels?

Clear borosilicate materials and intumescent glazing are the best alternatives for those seeking natural light. They provide the same, if not better, containment of smoke and flames as traditional steel, while allowing for modern, visually open architectural designs.

Who should install these specialized building components?

Only certified professionals with specific training in passive safety systems should perform these installations. Improper installation, such as using the wrong type of sealant or inadequate framing, will compromise the entire assembly and void the manufacturer's warranty and safety certifications.
