Have you ever wondered how a material as seemingly fragile as glass can stop a raging inferno in its tracks? When we think of safety in architecture, we often picture concrete walls or steel doors, yet fire glass has revolutionized how we design secure, light-filled spaces. Unlike standard window panes that shatter quickly when exposed to extreme heat, fire rated glass is engineered to withstand high temperatures for extended periods. This specialized safety glass does more than just let light in; it serves as a critical barrier against smoke, flames, and sometimes even dangerous radiant heat.
Why is understanding fire glass so important for building owners and architects? The answer lies in its ability to compartmentalize a fire. By trapping the flames in a single area, fire rated glass allows occupants valuable time to escape while giving emergency responders a chance to control the situation. Whether you are renovating a commercial office or designing a school, knowing the capabilities of safety glass is essential. Throughout this guide, we will explore the technology behind fire glass, the different ratings available, and why fire rated glass is a non-negotiable element of modern building safety.
Why does ordinary glass fail during a fire? Standard annealed glass is sensitive to thermal shock. When one side heats up rapidly while the edges remain cool, the stress causes it to shatter, often within minutes of a fire starting. Once the glass breaks, the barrier is gone, allowing fire to spread unchecked. Fire glass, however, is manufactured differently. Through chemical tempering or the inclusion of special interlayers, fire rated glass maintains its integrity under extreme thermal stress.
Is safety glass always the same as fire glass? Not necessarily. While all fire glass must act as safety glass to prevent injury from impact, not all safety glass is fire-rated. For example, tempered glass is a type of safety glass that shatters into dull cubes to prevent cuts, but it does not offer significant protection against fire spread. True fire rated glass undergoes rigorous testing to ensure it remains in the frame during a blaze. This distinction is vital when specifying materials for exit corridors or stairwells.
How can a transparent sheet block intense heat? The mechanism depends on the type of fire glass used. Some fire rated glass products are made of specialized ceramics. These ceramics have a very low coefficient of expansion, meaning they do not expand significantly when heated. This property allows the fire glass to remain stable even when temperatures soar above 1000 degrees Fahrenheit. While these ceramic versions of fire rated glass are excellent at stopping flames (integrity), they may not block radiant heat.

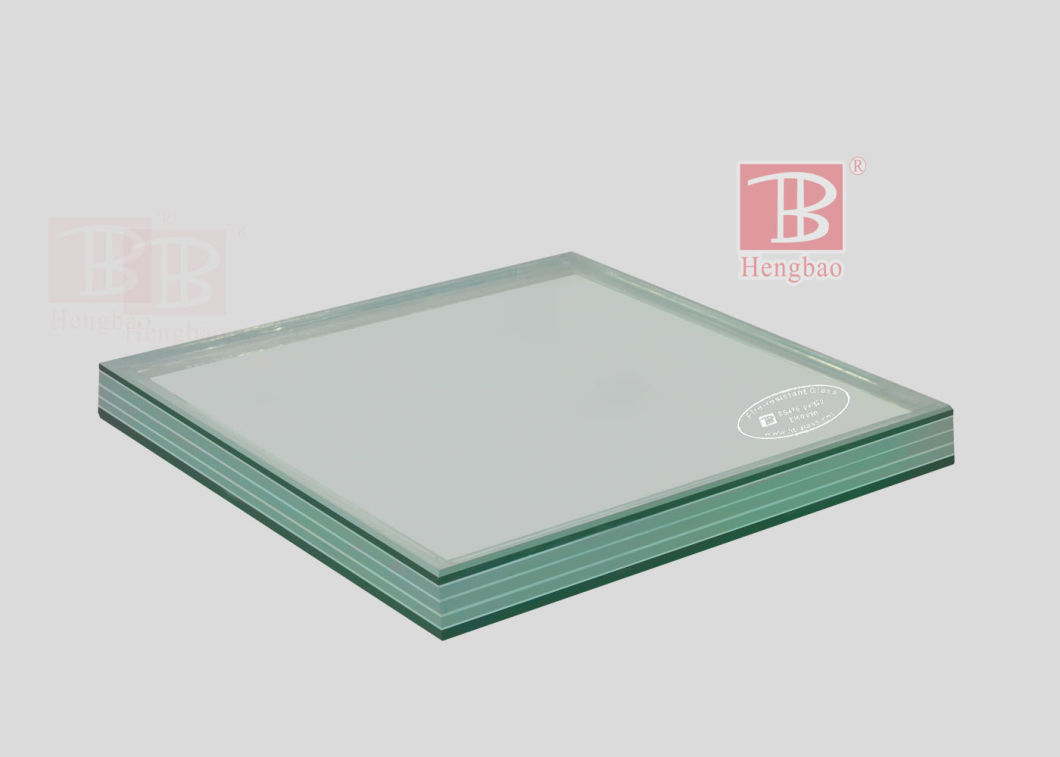

What about fire glass that blocks heat transfer? This is where intumescent interlayers come into play. This type of safety glass consists of multiple layers of glass separated by a clear, gel-like substance. When a fire strikes, the heat causes the outer layer of glass to break, triggering the gel to expand and turn into an opaque, rigid foam. This foam acts as an insulation shield. It stops the fire from passing through and significantly reduces the amount of heat felt on the other side of the glass. This insulating capability of fire rated glass is crucial for protecting escape routes where radiant heat could otherwise burn people passing by.
How do industry professionals classify the protection levels of safety glass? Understanding the ratings is critical for compliance. Fire glass is generally categorized by three main performance criteria: Integrity (E), Radiation Control (EW), and Insulation (EI). Each classification determines where the fire rated glass can be safely installed within a building.
The table below breaks down these specific fire glass classifications to help clarify their differences.
Classification | What does this fire glass do? | Does it block flames? | Does it block heat? | Typical Application for this Safety Glass |
|---|---|---|---|---|
Integrity Only (E) | Holds back flames and smoke for a set time. | Yes | No | Windows or doors where heat transfer is not a major safety concern. |
Integrity & Radiation (EW) | Stops flames and reduces some radiant heat transfer. | Yes | Partially | Corridors where reducing heat transmission aids evacuation. |
Integrity & Insulation (EI) | Stops flames, smoke, and blocks almost all heat transfer. | Yes | Yes | Escape routes, stairwells, and fire barriers where people might be present. |
How can you trust that your fire glass will perform when disaster strikes? You cannot rely on visual inspection alone. Fire rated glass must undergo stringent testing by accredited laboratories. During these tests, the safety glass is mounted in a furnace and subjected to temperatures replicating a real fire. The fire glass is monitored to see how long it remains intact and, in the case of insulated glass, how well it blocks heat.
Does the frame matter as much as the fire glass itself? Absolutely. Installing high-quality fire rated glass in a standard aluminum frame is a recipe for failure. The frame must also be fire-rated to ensure it doesn't melt or warp, causing the safety glass to fall out. Certification labels on fire glass products usually indicate the duration of protection, such as 20, 45, 60, or even 120 minutes. Always ensure that both the fire rated glass and the framing system carry the necessary stamps of approval to meet local building codes.
Which areas of a building are most vulnerable to fire spread? Building codes often dictate specific zones where fire glass is mandatory. Stairwells are a primary location. As the main escape route in multi-story buildings, stairwells must remain free of smoke and flames. Fire rated glass doors and partitions in these areas ensure that occupants can descend safely without being overcome by fumes.
Where else is safety glass essential? Atriums and lobbies often use large panes of fire glass to maintain an open, airy feel while adhering to fire compartmentation rules. Without fire rated glass, these large open spaces would act as chimneys, drawing fire rapidly to upper floors. Additionally, server rooms and valuable storage areas often utilize fire glass to protect sensitive assets from fire damage originating in adjacent rooms. The use of fire rated glass in these applications provides both aesthetic appeal and critical functional safety.
Must safety compromise beauty? In the past, fire-rated barriers were often wired glass, which many architects found visually unappealing. Today, modern fire glass is crystal clear. This allows for seamless integration into contemporary designs. Fire rated glass can be used for floor-to-ceiling windows, sleek glass doors, and transparent partition walls. This transparency allows natural light to flow deep into a building, which is beneficial for occupant well-being.
Can fire glass be decorative? Yes, safety glass technology has advanced to allow for various finishes. Fire rated glass can be sandblasted, etched, or even combined with decorative films, provided these treatments do not interfere with the fire-resistant properties. This versatility means that architects do not have to choose between the safety of fire glass and their design vision. They can specify fire rated glass that complements the interior design while providing the highest level of protection.
Does fire glass require special care after installation? Like any building component, fire rated glass must be inspected regularly. While safety glass is durable, chips, deep scratches, or damage to the glazing compound can compromise its integrity. If the edge of the fire glass is damaged, it may fail prematurely when exposed to heat.
What should facility managers look for? Regular checks should ensure that the fire rated glass is not obstructed by furniture or signage that could interfere with its function or cover certification labels. Furthermore, the seals around the fire glass should be intact. If safety glass shows signs of fogging (in the case of multi-layered units) or cracks, it must be assessed by a professional immediately. Maintaining the condition of your fire glass ensures it is ready to perform its life-saving duty at a moment's notice.
Who can you trust for your fire glass needs? When it comes to protecting lives and property, the quality of your safety glass is paramount. You need a manufacturer that understands the intricate science of fire rated glass and offers products that meet rigorous international standards. Poorly manufactured fire glass may fail when you need it most, leading to catastrophic consequences.
Why should you consider [HengBao] for your next project? [HengBao] specializes in high-performance fire rated glass that combines superior safety with optical clarity. Their fire glass solutions are rigorously tested to ensure they meet the highest durability and fire-resistance ratings. Whether you need safety glass for a small renovation or a large commercial development, [HengBao] delivers fire rated glass products you can depend on.
The duration depends on the rating of the specific fire glass. Common ratings for fire rated glass include 20, 45, 60, 90, and up to 120 minutes. The rating indicates how long the safety glass will remain intact and prevent the passage of fire.
No, standard safety glass (like tempered glass) is not the same as fire rated glass. While tempered glass is safer than annealed glass regarding impact, it cannot withstand the intense heat of a fire for long. You must use certified fire glass where building codes require fire resistance.
Yes, most modern fire glass is also classified as safety glass. This means it meets impact safety standards (such as CPSC 16 CFR 1201) to prevent injury if someone accidentally walks into it. Always verify that your fire rated glass carries both fire and impact safety ratings.
Yes, especially the multi-layered insulated types of fire rated glass. The layers and interlayers that block heat also act as excellent sound barriers. This makes this type of safety glass ideal for schools, offices, and conference rooms where noise reduction is desired alongside fire safety.
