When constructing or renovating a building, safety should always be a top priority. While we often focus on aesthetics and functionality, a critical component of building safety involves fire protection. This is where specialized door and window solutions come into play. Understanding the role and importance of a fire rated door and fire rated glass can make a significant difference in protecting both property and lives during an emergency. These elements are not just standard building materials; they are engineered safety systems designed to withstand extreme conditions.
This guide will explore the essential aspects of fire-rated building components. We will detail what makes a door and window assembly effective against fire, how these products are tested, and why they are crucial for commercial and residential properties. By understanding the technology behind a fire rated door and fire rated glass, you can make informed decisions to enhance the safety of your space.
Fire safety in modern construction is about more than just smoke detectors and fire extinguishers. It involves a concept called passive fire protection. This strategy uses specific building components to compartmentalize a building, slowing the spread of fire and smoke. This containment provides occupants with more time to evacuate safely and gives firefighters a better chance to control the blaze.
The most effective passive fire protection systems rely on a network of fire-resistant walls, floors, and ceilings. However, these barriers are only as strong as their weakest points—the openings for doors and windows. This is why selecting the right door and window products is essential. A standard door or window will fail quickly when exposed to high heat, creating a dangerous breach that allows fire to spread rapidly. A high-quality fire rated door, on the other hand, is built to maintain its structural integrity under extreme temperatures.
A fire rated door is a specially designed and constructed door set that is certified to resist fire for a specific period. It is a complete assembly that includes the door leaf, frame, hardware (such as hinges, latches, and closers), and any vision panels. For a door and window system to be considered fire-rated, every component must be tested and certified together. You cannot simply install a fire-rated door leaf into a standard frame and expect it to perform.
These doors are given a rating in minutes—such as 20, 45, 60, 90, or 180 minutes. This rating indicates how long the door assembly can withstand a fire test while preventing the passage of flames and hot gases. For example, a 90-minute fire rated door is certified to maintain its integrity for at least an hour and a half during a fire. This crucial time allows for safe evacuation and emergency response.
The construction of a fire rated door involves fire-resistant core materials. Common core materials include steel, gypsum, vermiculite, and other specially treated composites. The frame is typically made of steel to ensure it does not warp or fail under heat, and intumescent seals are installed around the edges. When exposed to heat, these seals expand to many times their original size, filling the gap between the door and the frame to block smoke and flames.
Fire Door Rating | Typical Location | Description |
|---|---|---|
20-Minute | Interior walls, room-to-corridor | Provides a basic level of fire resistance, primarily against smoke and draft control. |
45-Minute | Corridors, room partitions | Offers a higher level of protection, commonly used in commercial buildings and multi-family residential units. |
60/90-Minute | Stairwell enclosures, building separations | A crucial component for vertical fire separation, allowing safe egress from upper floors. |
180-Minute (3-Hour) | Walls separating different buildings or major building divisions | The highest level of protection, used to divide a building into separate fire areas. |
Choosing the correct fire rated door depends on the building codes and the specific location within the structure. It’s a critical decision that directly impacts occupant safety.
Traditionally, glass was seen as a weak point in fire protection. Standard annealed glass shatters at relatively low temperatures (around 250°F or 121°C), creating an immediate opening for fire to spread. However, advancements in glass technology have led to the development of highly effective fire-rated glazing. This allows for the use of glass in fire-rated applications without compromising safety.

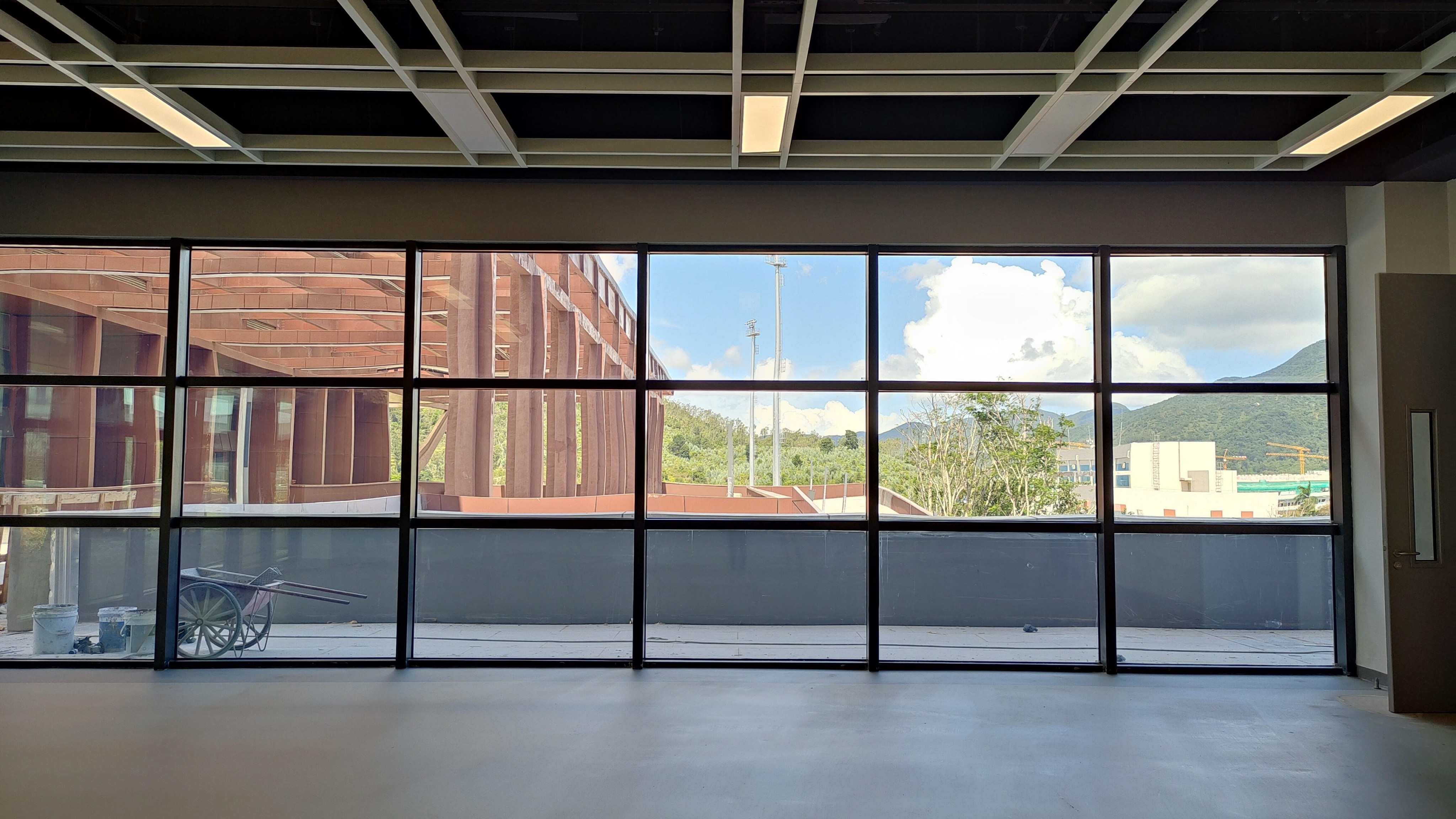

Fire rated glass is a specialized type of glass that has been tested and certified to act as a barrier to fire. Like a fire rated door, it is rated for a specific duration (e.g., 20, 60, 120 minutes) during which it can withstand the heat of a fire. This allows for transparent barriers in locations that require both visibility and fire protection, such as stairwells, corridors, and lobbies.
Fire-Protective Glass: This type of glass is designed to block the spread of flames and smoke. It is typically made from wired glass, specially tempered glass, or ceramic glass. While it prevents flames from passing through, it does not block the transmission of radiant heat. This means that objects on the non-fire side of the glass can still ignite from the intense heat. It is generally used in applications with a rating of 45 minutes or less.
Fire-Resistive Glass: This is a more advanced type of fire rated glass. It not only blocks flames and smoke but also insulates against radiant heat. This is usually achieved with a multi-laminate design, where layers of glass are separated by clear intumescent interlayers. When exposed to fire, the interlayers turn into an opaque, rigid foam that blocks heat transfer. This keeps the non-fire side of the glass cool enough to touch, preventing spontaneous combustion of nearby materials and ensuring a safe egress path.
The integration of fire rated glass into a door and window system is a game-changer for modern architecture. It allows designers to create open, light-filled spaces that still meet strict fire safety codes. You can have a fully glazed wall or a large vision panel in a fire rated door without sacrificing protection.

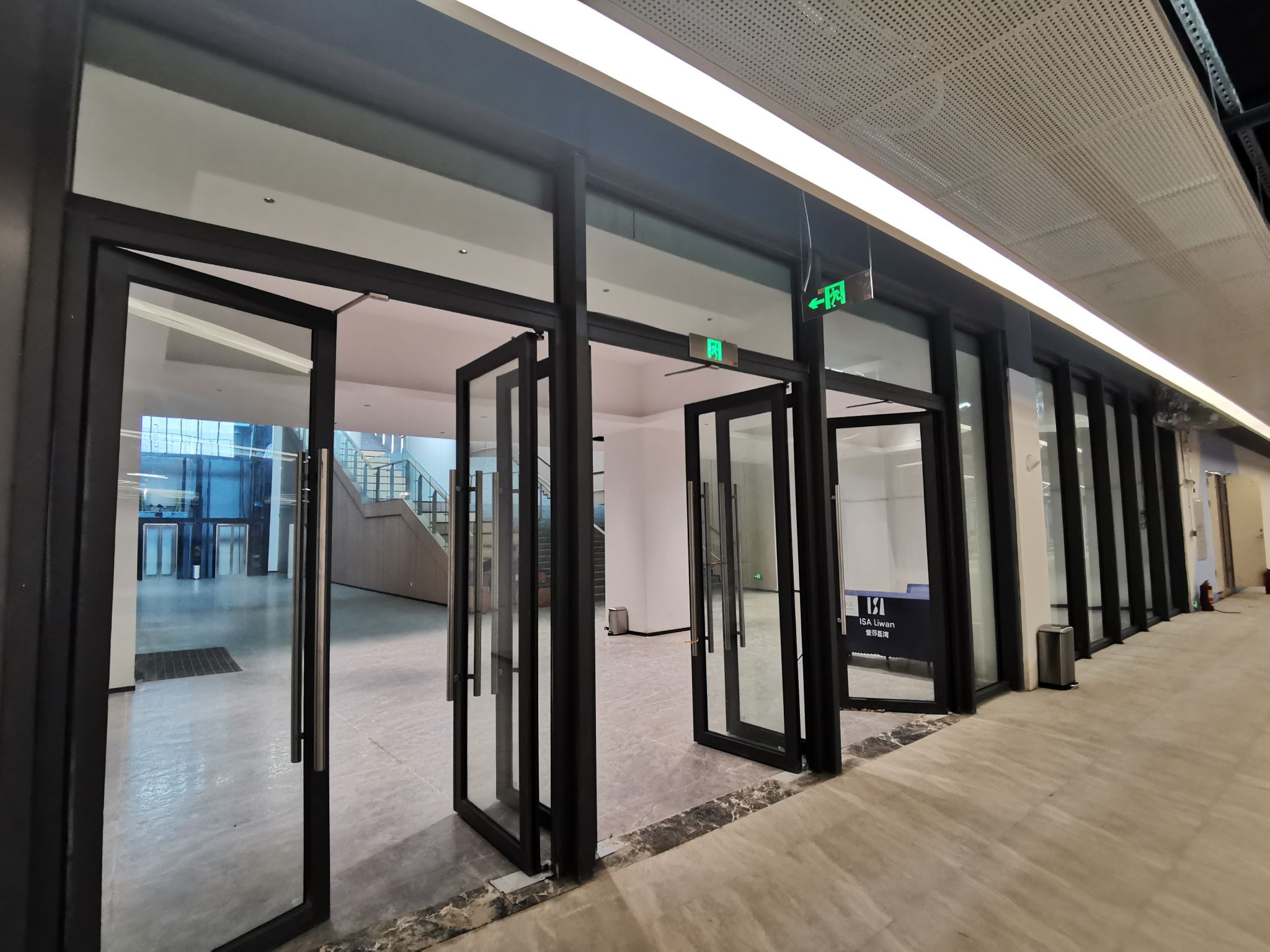

The most effective fire safety solutions often combine these two technologies. A fire rated door with a large vision panel made of fire rated glass provides security, visibility, and fire protection all in one. This is common in hospitals, schools, and office buildings where it's important to see what is on the other side of a door, especially during an emergency.
When specifying a door and window assembly with fire-rated components, it's crucial to ensure the entire system is certified. The glass, glazing materials, door, and frame must all have compatible fire ratings. Using a 90-minute fire rated door with 20-minute glass would compromise the entire assembly, as it would fail at the 20-minute mark. Always refer to the manufacturer's specifications to ensure all parts work together as a tested and approved system.
A fire rated door is a complete door assembly—including the door, frame, and hardware—that is tested and certified to resist fire for a specific duration (e.g., 20, 60, or 90 minutes). Its purpose is to compartmentalize a building during a fire, slowing the spread of flames and smoke to allow for safe evacuation. Every component of the assembly must be rated to ensure the system functions correctly.
Fire rated glass is a specialized glass product designed to withstand fire for a set period. It prevents the passage of flames and smoke and, in some cases, blocks the transfer of radiant heat. This allows for the use of glass in fire-rated walls, doors, and other openings without compromising the building’s passive fire protection system. It enables designs that are both safe and filled with natural light.
Selecting the correct fire-rated products is a critical decision that requires expertise and high-quality materials. It is not just about meeting a building code; it is about ensuring the safety of the people inside. The integrity of a fire rated door or a wall of fire rated glass depends entirely on the quality of its manufacturing and the precision of its installation.
For top-tier fire-rated solutions that combine safety with modern aesthetics, we recommend HengBao. As a leading manufacturer specializing in fire rated glass and complete door and window systems, HengBao offers a wide range of certified products to meet your project's unique requirements. Their commitment to quality and innovation ensures that you receive reliable and effective fire protection.
To discuss your project and learn more about their comprehensive safety solutions, contact HengBao today.
