Understanding the components of a building’s fire safety system is crucial for architects, builders, and property owners. While fire alarms and sprinkler systems often come to mind first, passive fire protection elements like fire rated windows are just as important. These specialized windows are designed to contain fire and smoke, providing critical time for evacuation and preventing a fire from spreading. This guide will explore what makes a window fire rated, their applications, and why they are an essential part of modern construction.
A window isn't just a piece of glass in a frame; a fire rated window is a complete, engineered system. For a window assembly to earn a fire rating, every single component—from the glass to the frame and even the seals—must be tested and certified together. This ensures the entire unit can withstand the intense heat and pressure of a fire for a specified duration.

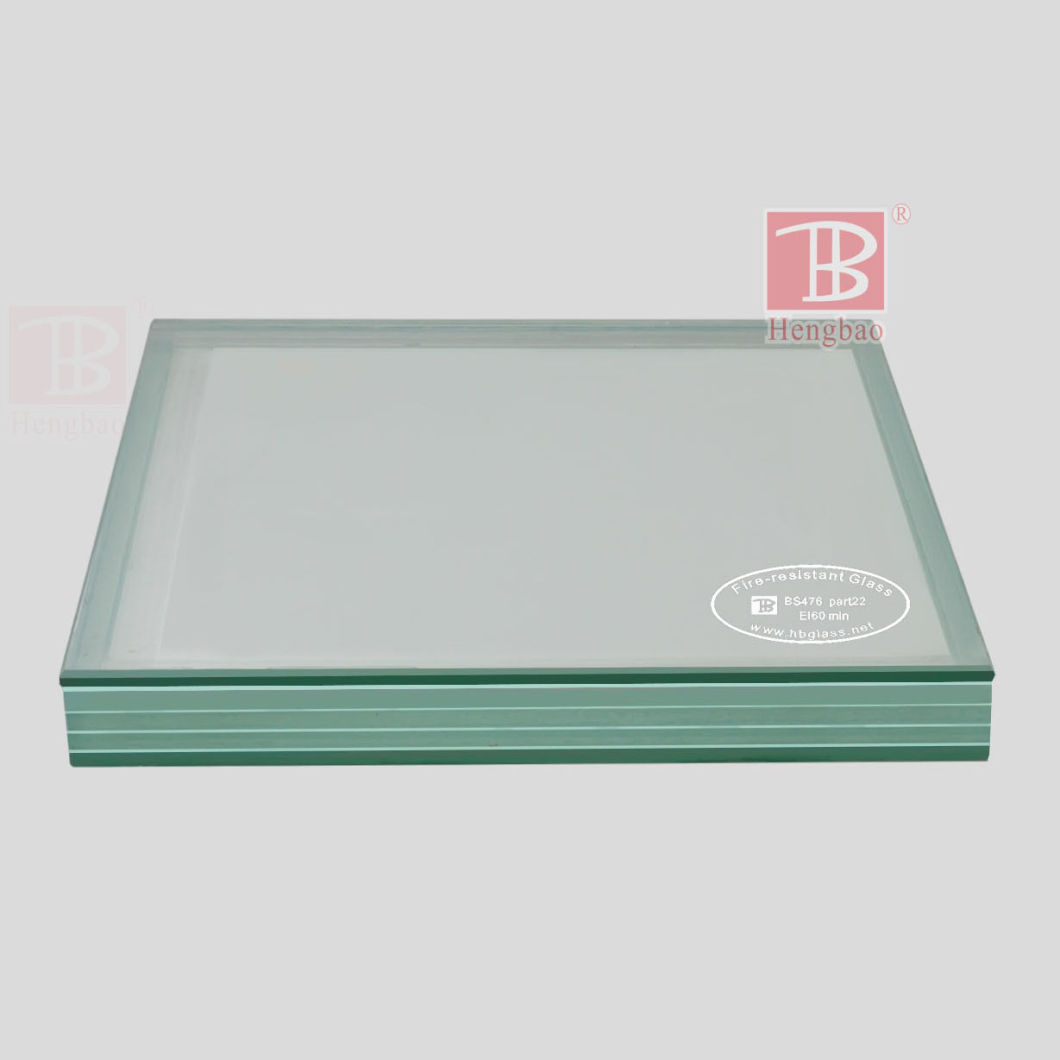

The core component is the fire rated glass. Unlike standard annealed or tempered glass, which shatters quickly when exposed to high temperatures, fire rated glass is manufactured to resist thermal shock. There are several types of this specialized glass, including polished wired glass, ceramic glass, and transparent intumescent-laminated glass. Each offers different levels of protection and clarity.
The window frame is equally vital. Frames for fire rated windows are typically made from steel or specialized aluminum profiles designed to maintain their structural integrity under extreme heat. Wooden frames can also be used if they have been treated to achieve a specific fire-resistance rating. The seals used in the assembly are also critical. They often contain intumescent materials that expand when heated, creating a tight seal that blocks flames and hot gases. This comprehensive approach ensures the entire fire rated window system performs as expected during an emergency.
Fire ratings are given in minutes and indicate how long a building element can resist fire. A common and important classification is the E 30 integrity rating. This means the fire rated window can prevent the passage of flames and hot gases for a minimum of 30 minutes when exposed to a fire on one side. This 30-minute window is often the difference between a contained incident and a catastrophic blaze, allowing occupants to escape safely and giving firefighters a chance to control the fire. The integrity rating is a fundamental measure of the performance of fire safety glass and its assembly.
Yes, there are various types of fire rated windows designed to meet different architectural needs and regulatory requirements. The misconception that safety compromises aesthetics is no longer true. Modern advancements in fire rated glass technology have made it possible to have windows that are both safe and visually appealing.
Fire rated windows are available in a range of styles, from fixed windows to operable units, although the latter often has more complex design requirements to maintain the fire-resistant seal. The type of fire safety glass used can also be customized. For example, some projects may require fire rated glass that also offers insulation (EI rating) to block radiant heat transfer, providing even greater protection for escape routes.
Whether for an internal partition in an office, an external wall near a property line, or a door sidelight in a hotel corridor, a certified fire rated window solution exists. It's crucial to work with specialists who can help you select the right product based on the building code, location within the building, and desired performance level.
The need for fire rated windows is not arbitrary; it is mandated by building codes and regulations in specific situations. These rules are designed to protect life and property by compartmentalizing fire and slowing its spread.
One of the most common scenarios requiring fire rated windows is when they are installed in a fire-resisting wall. These walls are designed to act as barriers to fire, and any openings within them must maintain that barrier. A standard window would quickly fail, creating a hole for the fire to pass through. By installing a fire rated window, the integrity of the fire-resisting wall is preserved.
Another critical application is for windows located close to a property boundary. Building codes often specify a minimum distance between a building and its boundary line. If windows are placed closer than this specified distance, they must be fire rated to prevent a fire from spreading to an adjacent property or vice-versa. This is a key strategy in preventing urban fires from escalating into block-wide disasters.
Ultimately, the goal is to create compartments within a building that can contain a fire for a predictable amount of time. Fire rated windows, along with fire-rated doors and walls, are essential components of this passive fire protection strategy. Using high-quality fire safety glass in these applications is not just a recommendation—it's a legal and ethical responsibility.
The table below describes the different components and their roles in a fire-rated window assembly.
Component | Material Example | Role in Fire Safety |
|---|---|---|
Fire Rated Glass | Intumescent laminated glass, ceramic glass | Resists thermal shock, prevents flame passage, and can block radiant heat. This fire safety glass is the primary barrier. |
Window Frame | Steel, specialized aluminum | Maintains structural integrity under extreme heat, holding the fire rated glass securely in place throughout the fire event. |
Intumescent Seals | Graphite-based strips | Expand when exposed to heat, sealing the gaps between the glass and frame to block smoke and hot gases. |
Fixings & Hardware | Certified steel screws and fittings | Must be able to withstand high temperatures without failing to ensure the entire fire rated window assembly remains intact. |
This integrated system ensures that fire rated windows provide reliable protection. The performance of the fire safety glass is only as good as the frame and seals that support it.
Choosing the right fire rated window is only half the battle. Proper installation is just as critical to ensure the window performs as certified during a fire. A certified fire rated window installed incorrectly can fail prematurely, rendering its safety features useless.
Installers must follow the manufacturer's precise instructions, using the specified fixings and paying close attention to the details of the surrounding wall construction. The gap between the window frame and the wall must be packed and sealed with approved fire-stopping materials. Any deviation from the tested and certified installation method can compromise the entire fire-rated assembly. For this reason, always use experienced professionals who specialize in installing passive fire protection systems.
When it comes to fire safety, there is no room for compromise. The lives of building occupants and the protection of valuable assets depend on the quality and reliability of products like fire rated windows and fire rated glass. It is essential to partner with a manufacturer that has a proven track record of excellence, stringent quality control, and certified products that meet international standards.
For your next project, consider HengBao for all your fire safety glass needs. As a leading manufacturer in the industry, HengBao is dedicated to producing high-performance fire rated glass and window solutions that you can trust. Our commitment to innovation, quality, and safety ensures that you are getting a product that will perform when it matters most.
Protect your building and its occupants with the best in the business. For consultations and to learn more about our comprehensive range of fire rated windows, please contact us today.
Email: ritachan@hbglass.net
Phone: +86-138-2802-2123
Fire-protective glass, like wired or ceramic glass, is designed to block flames and smoke (integrity). Fire-resistive glass, typically an intumescent laminate, not only blocks flames and smoke but also radiant heat (insulation). Fire-resistive glass is often required in locations where protecting escape routes from heat is critical. Both are forms of fire safety glass.
No, you should never apply aftermarket films to fire rated glass. Doing so will void the certification of the fire rated window because the film can alter the way the glass performs in a fire, potentially causing it to fail prematurely.
A certified fire rated window will have a permanent label, often etched into the glass or affixed to the frame. This label provides information about the manufacturer, the test standard it meets, and its fire rating in minutes. Without this label, you cannot verify its performance.
